AD-S50-1
Adapter for Mifare S50 RFID Card, Passive Power

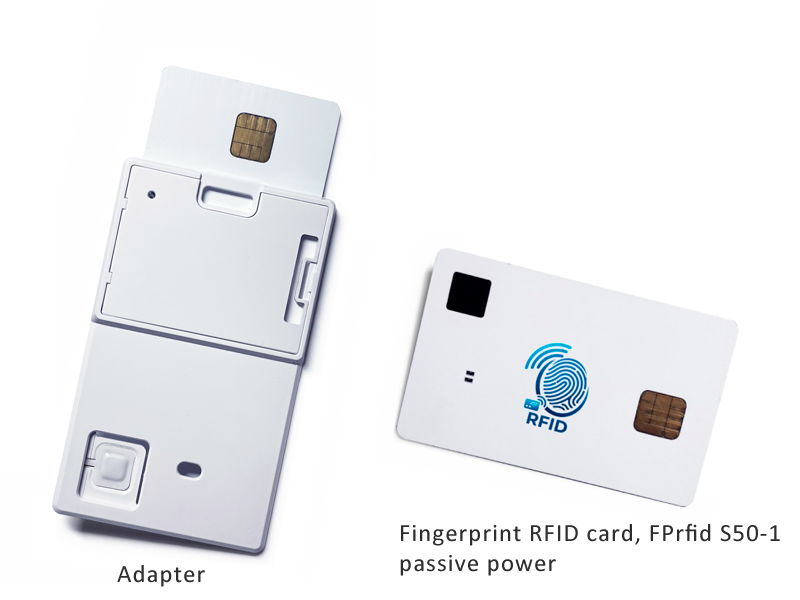

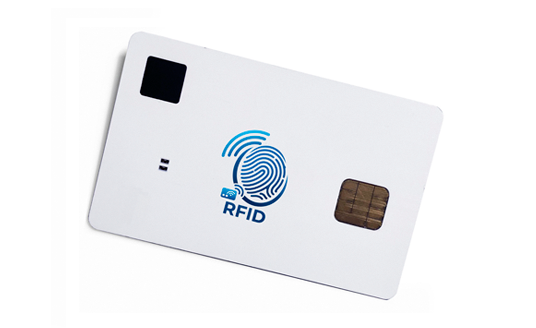

The AD-S50-1 Adapter is designed to improve the compatibility of the FPrfid S50-1 Fingerprint MIFARE S50 RFID Card (Passive Power) with standard RFID card readers. Most RFID readers operate with a 300 ms reading cycle, while the FPrfid S50-1 fingerprint card requires approximately 800 ms to complete fingerprint verification via its built-in MCU before transmitting the UID.
In many cases, reader firmware cannot be modified due to security certification restrictions. The AD-S50-1 Adapter bridges this timing gap, allowing the fingerprint RFID card to operate smoothly with existing readers without requiring firmware changes.
FEATURE & BENEFIT
- Improves compatibility of FPrfid S50-1 Fingerprint MIFARE S50 RFID Card with standard RFID card readers
- Bridges the timing gap between 300 ms reader cycle and 800 ms fingerprint verification process
- No firmware modification required for existing RFID readers
- Works with most existing RFID readers and access control infrastructure
- Cost-effective solution to upgrade security without replacing installed readers
- Plug-and-play design for easy installation and deployment

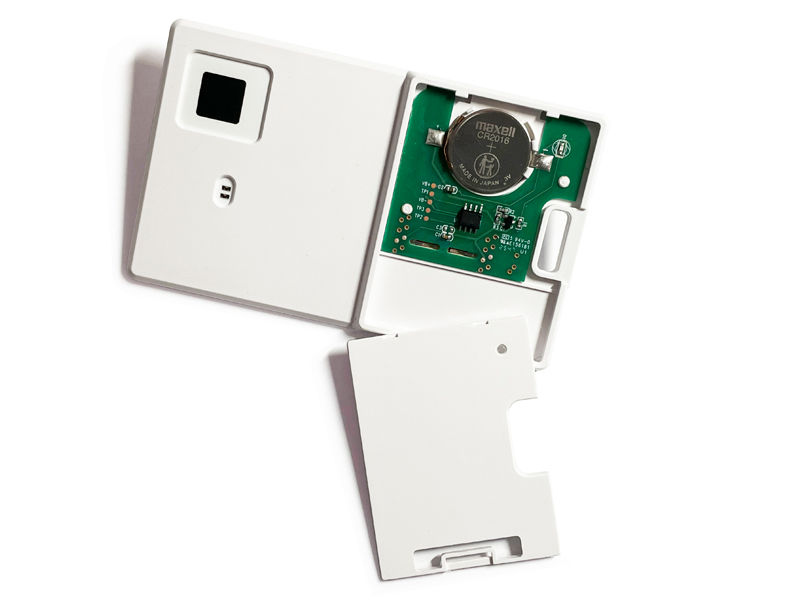

- Powered by CR2016 3V coin battery
- Approx. 6 months battery life based on 50 uses per day
SPECIFICATION
| AD-S50-1 Adapter | |
| Model | AD-S50-1 |
| Application | Adapter for FPrfid S50-1 Fingerprint MIFARE S50 RFID Card |
| Power Source | CR2016 3V Coin Battery |
| Battery Life | Approx. 6 months (based on 50 uses per day) |
| Adapter Dimensions | 63.13 mm (W) × 105.3 mm (L) × 55.2 mm (T) |
* Features and specifications are subject to change without notice.
