Hybrid Optical Fingerprint Recognition Embedded Module


Optical Fingerprint Recognition Embedded MODULE

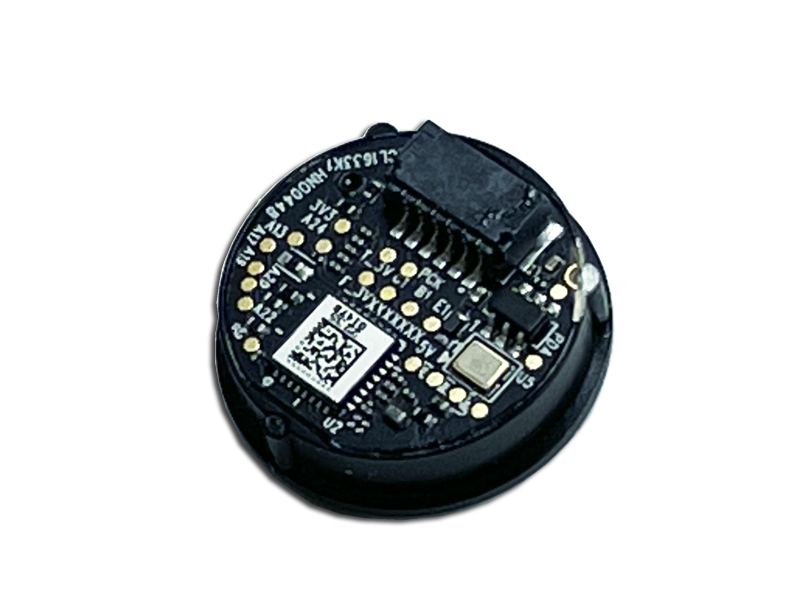

The FPM-1633K1 is the latest miniature touch sensor with extensive enhancements on power consumption and user flexibility. It allows 360-degree rotation, which enables maximum performance without compromising on design aesthetics.

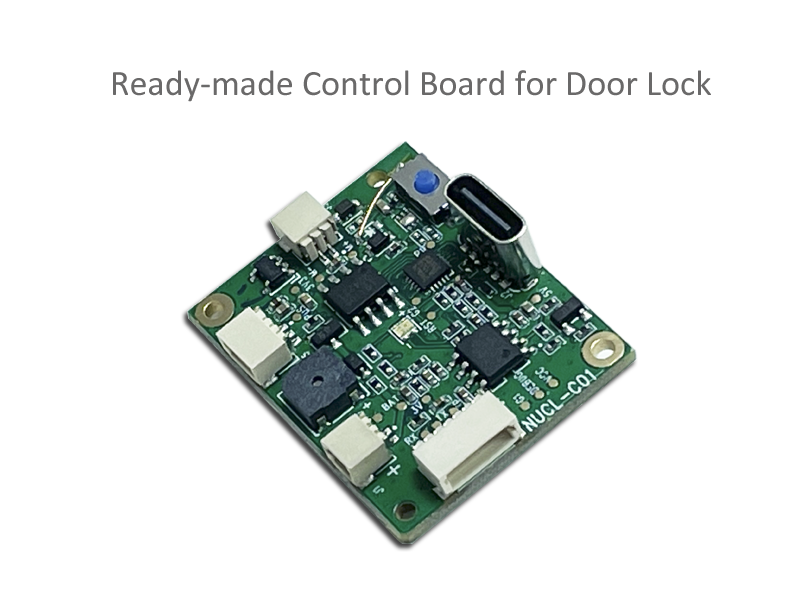

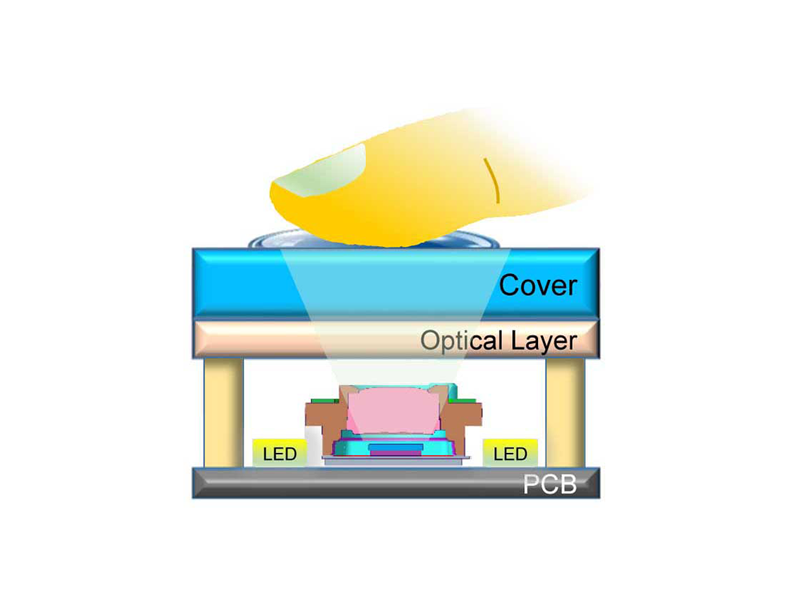

The product integrate optical sensor, light source and touch under cover glass, allowing it to instantaneously capture high resolution images of the fingerprint while rapidly outputting the captured images through the high speed SPI interface to the MCU for recognition algorithm. This range of fingerprint sensor with their advanced optical technology, press instructions, durable structure, high ESD immunity and other features combine to provide designers with a reliable and highly functional sensor for products requiring fingerprint recognition functions.

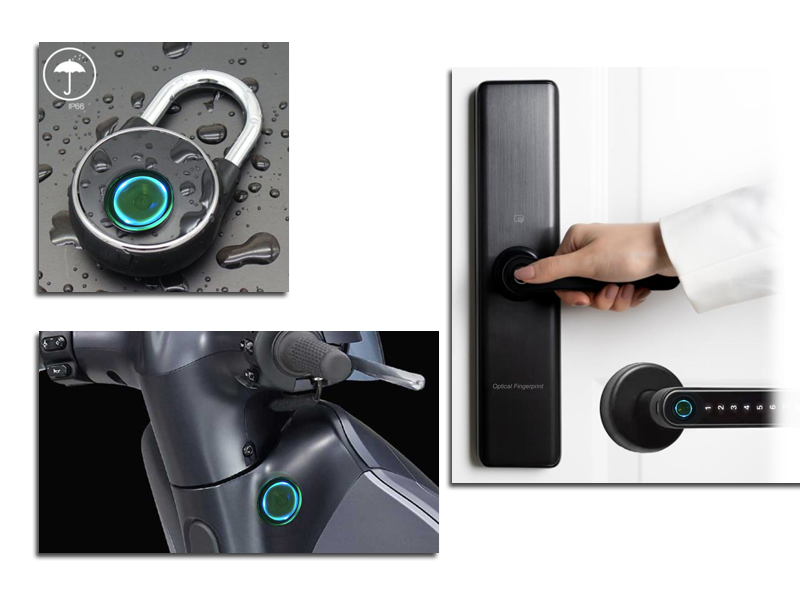

  • Outdoor application (especially rainy day)
  • Under glass design and no ESD concern
  • Support 2.0mm cover glass
  • Anti -scratch and good protection
  • Wet finger recognition workable with water pouring and water drop
  • Built-in touch and Self-luminous without additional light indicator
  • Matching on Chip (MOC)
  • Precise Biometrics Biomatch® embedded matching algorithm
  • Support hole-less cover (good ID)



Ø21.0mm(OD), Ø19.0mm(ID)
H=7.1mm (include 1.8mm cover glass & 0.8mm PCB)

Weigtht 6g + 0.05g
Supply voltage 3.3V
Active mode supply current 67.3mA
Effective sensing area 8mm x 8 mm
Resolution 508 dpi
Enroll times 8 times
FRR / FAR @ FAR=1 / 50K
Storage capacity 30 fingerprints
Interface UART
Baud rate 115200 bps
Supply voltage 3.3V
Standby mode supply current 3uA@3.3V
Trigger Active high
Exterior color Green
Operating Temperature -30℃~70℃
Storage Temperature -40℃~85℃
Humidity 40% ~ 85% RH under 60℃
ESD protection


Air discharge±15KV;Contact discharge±8KV
