KB-6868-MS

USB Keyboard built-in magnetic stripe card and smart card reader

KB-6868-MS

Retro POS KEYBOARD BUILT-IN MAGNETIC STRIPE & SMART CARD READER

Digimore KB-6868-MS, Retro Magnetic Stripe Reader Keyboard features a 104-key keyboard layout with a built-in Smart Card Reader (SCR) for banking transactions, identification systems, secure login and for secure Credit Cards. Combining the latest magnetic stripe and smart card reading technology, the KB-6868-MS offers the utmost POS keyboard performance and longevity to the general market. Not only is it ideal for any retail environment, but also a perfect tool for PC security, health care office, identification, and much more. Antimicrobial ABS material (option) is also available upon requested.

FEATURE

  • Full size & heavy duty design
  • USB 1.1 (Keyboard)/ USB 2.0 (Magnetic Stripe Card Reader & Smart Card Reader)
  • Enhanced 104-key with large L-shaped Enter key
  • Support magnetic stripe card ISO7810/ 7811-1~6/ smart card ISO7816 Class A, AB and C
  • Fully compatible for Windows 98SE/ME/2K/XP/Vista, Windows 7 or later

SPECIFICATION

Keyboard
Key Numbers 104/ 105/ 109 keys (US/ EU/ JP)
Key Switch Mechansim Membrane-type Key switch with 20 million life cycle time
Total Travel Distance 4 +/- 0.5 mm
Key Force (Peak Load) 50 +/- 7g
Interface USB 1.1 Version
Input Power 5Vdc, < 100mA
Key Caps Ergonomic keycap design with 5 different height
LEDs Indicator NumLock, CapsLock, ScrolLock, Card Read/Write Indicator

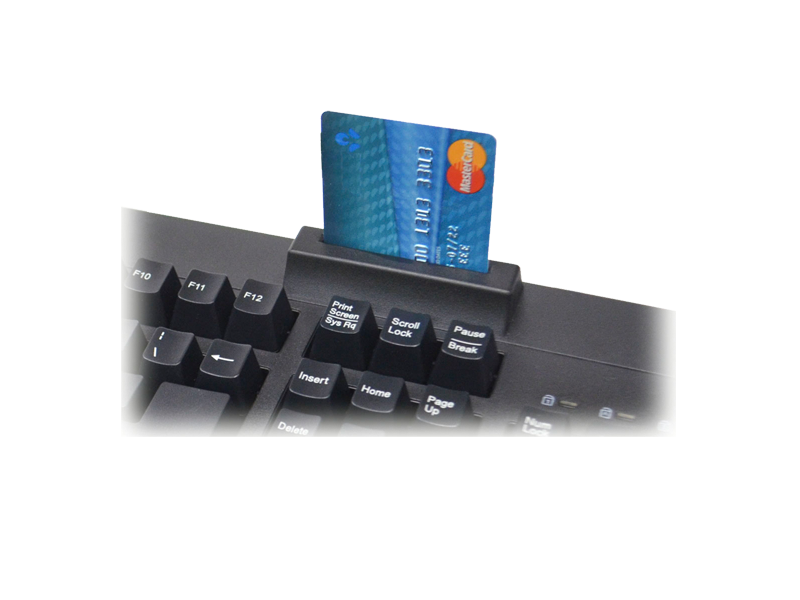

Magnetic Stripe Card Reader
Number of Tracks Track 1 & 2 or Track 1, 2, &3
Compatibility ISO 7810 and 7811-1~ 6 cards/ Reads AAMVA driver license cards
Communications Decoded track data sent through keyboard communication cable
Output Data Formatting Default card data output format or customized data output format is programmable through PC configuration utility
Operating Life 1,000,000 card swipes
Card Speed Range 3 to 60 IPS (inches per second)
Audio Beeper Indicates error free card data reading
Smart Card Reader
Standard ISO 7816
Protocols T=0,T=1.2-wire; SLE4432/42 (S=10), 3-wire, SLE4418/28 (S=9), 12C (S=8)
Reading Rate/Frequency 420 Kbps / Up to 8Mhz
Card Type Support 5V, 3V and 1.8V smart card ISO 7816 Class A, AB and C
API Support PCSC, CTAPI, Synchronous-API, OCF
PCSC Driver Support Windows 98/ME/2K/XP (32bit), 2003 Server Win, Win NT, Windows CE5.0/ CE.NET, Windows XP 64bit, Windows Vista (32bit/ 64bit), Windows 7, Linux
Reliability 100K card insertions
Others
Operating Temperature 0 to 50 degrees Celsius (10% to 95% RH, no condensation)
Storage temperature -10 to 65 degrees Celsius (10% to 95% RH, no consdensation)
Physical Dimension 450.17 (L) x 171 (D) x 46.37(H) mm/ 1.0 kg (N.W.)
Box Dim. / Weight 500 (L) x 220 (D) x 55 (H) mm/ 1.3 Kg (G.W.)
