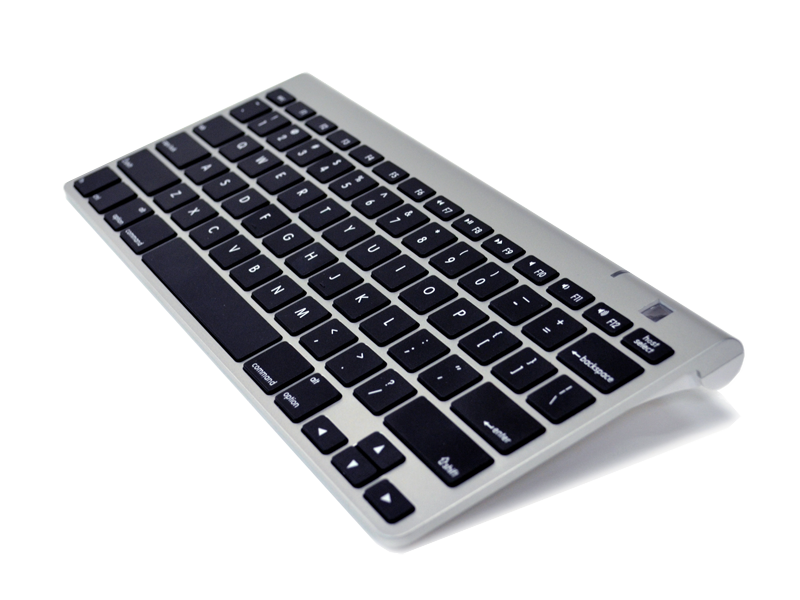

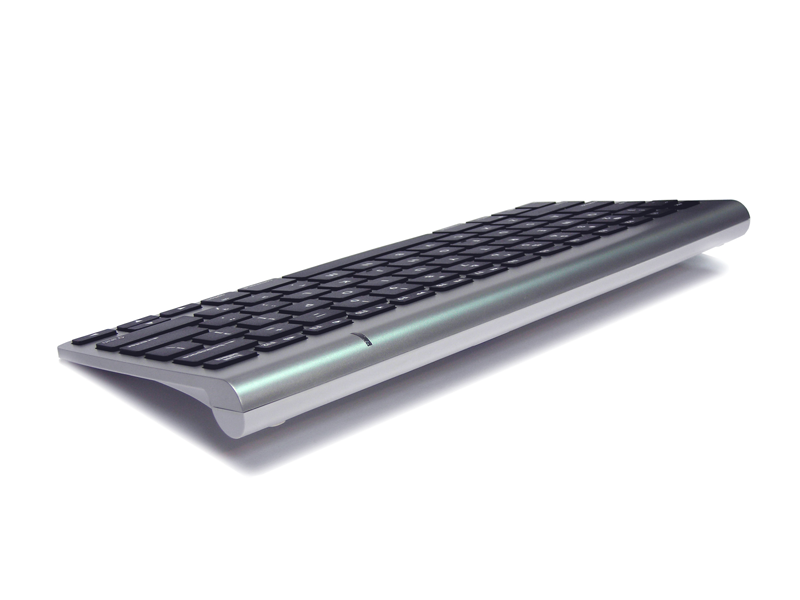

WKB-803A, is at the forefront of cutting edge wireless keyboard with multi-link switchable feature (Patented). It is an ideal wireless keyboard for using iMac, iPad, iPhone or other Android OS Tablets in between, thanks to multi-host switchable feature. This compact size keyboard comes equipped with Wireless 3.0 technology with 2 x AA batteries, scissor-type key mechanism among many other features.
| Key Numbers | 78/ 79 keys (US/ EU layout) |
| Tx Technology | wireless technology, V. 3.0 |

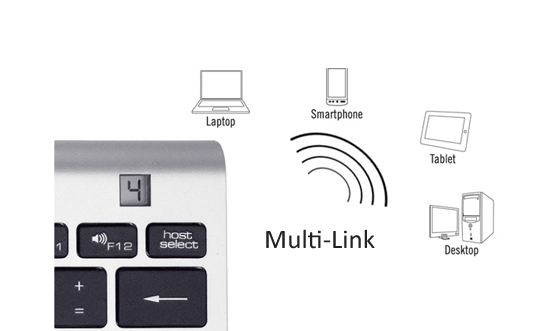

| Feature Key | "host select" key+1,2~8 keys for host selection |
| HTN Display | 1 digit HTN display, monochrome |
| No. of Host Register | Register up to 8 different host |
| Antenna/ Antenna Gain | PCB antenna/ 0 dBi (Typ) |
| Frequency/ Channels | 2.402Ghz ~ 2.480Ghz/ 79 channels |
| Modulation | GFSK (differntial phase shift keying) |
| Operating Range | Up to 8M (open field) |
| Key Switch | Scissor-type switch with rubber dome |
| Key Force/ Traveling | 55 +/- 7g, 2.1 +/-0.2mm (traveling distance) |
| LED Indicator | 1 LED indicates pairing (blinking), CapLock, and low battery |
| Function Keys for Mac | F1 less brightness, F2 increase brightness, F3, Expose, F4 dashboard |
| Fn Key + F1~F12 Keys | Holding Fn key and pressing F1 for example is Help under Windows |
| Switch/ Button | 1 x power switch, 1 x pairing button |
| Power Source | 3.0VDC, 2 x AA Alkaline batteries |
| Dimension/ Weight | 285.0 (L) x 132.0 (W) x 18.5 (H)mm/ 0.4 kgs (NW) |
| Compatibility | Compatible with Windows XP or later, Mac OS 10.5.8 or later version, iPad, iPhone 3Gs/4, other MID with Android OS |
| Accessories | 2 x AA batteries, user's manual |
