KB-6868S-FcA

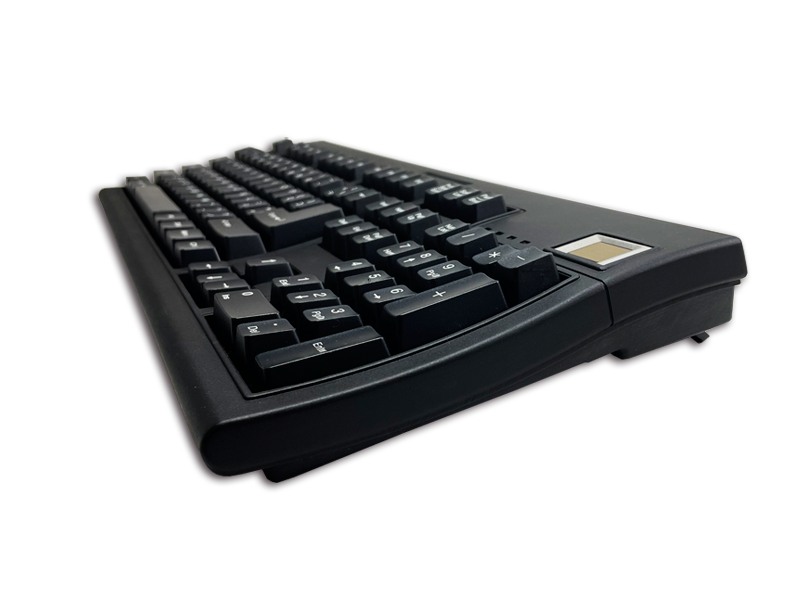

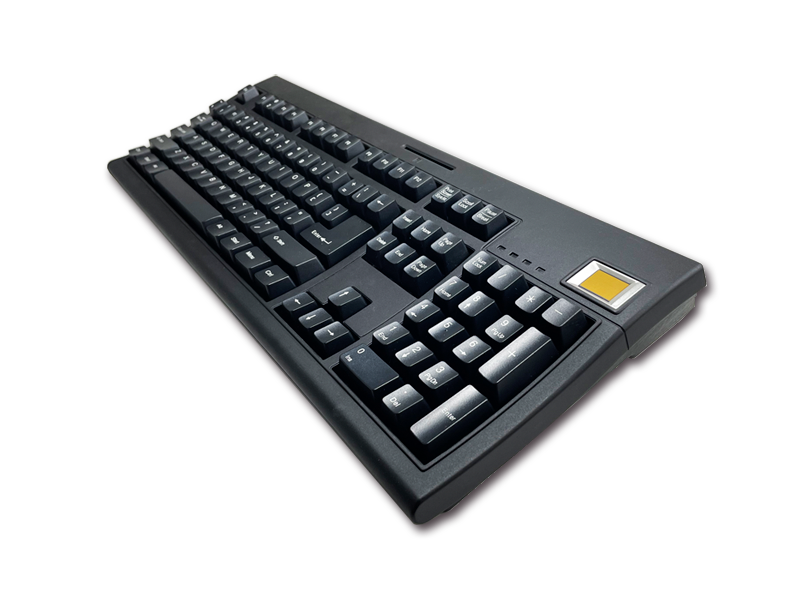

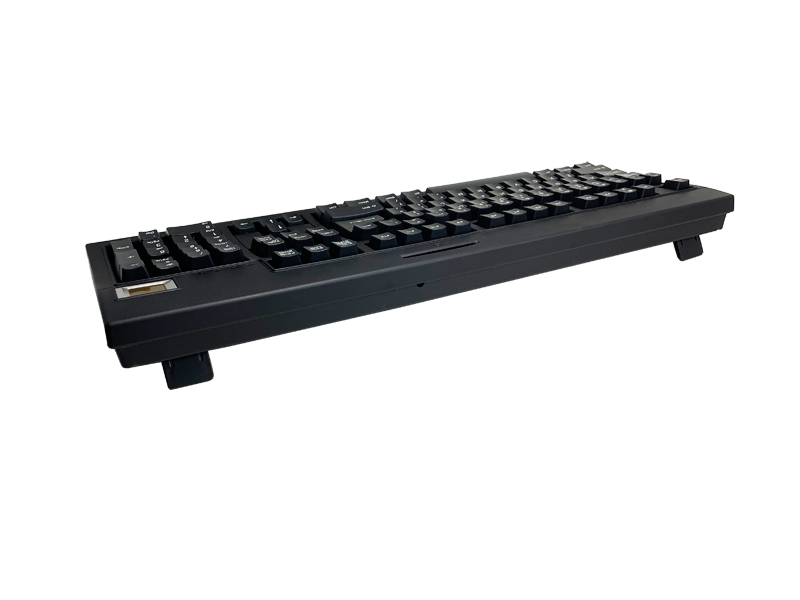

Full-Size Smart Card & Capacitive Fingerprint Keyboard

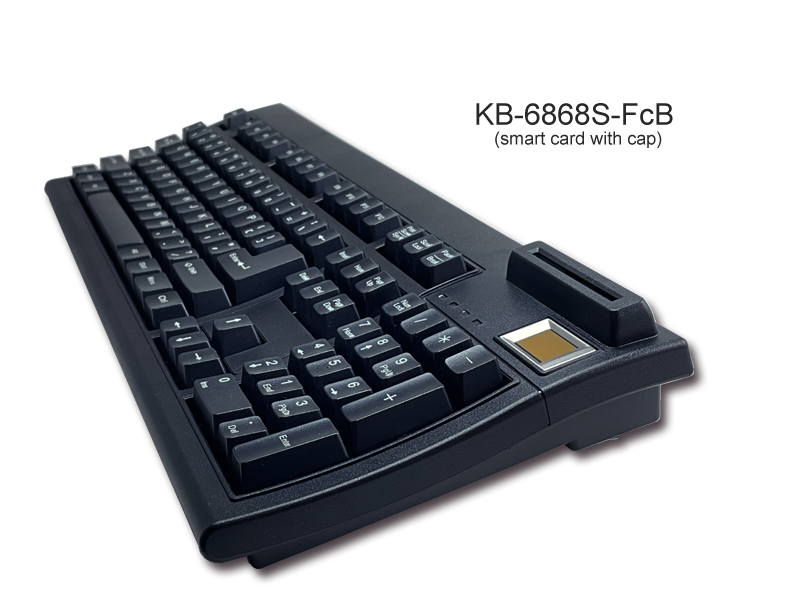

The KB-6868S-FcA is a robust full-size USB keyboard made in Taiwan, integrating a high-security smart card reader and PIV-certified capacitive fingerprint sensor. Featuring EMV 4.0 and PBOC 2.0 certified smart card reader and a 508 DPI fingerprint sensor with gold-coated active bezel, it ensures precise ID verification for banking, healthcare, government, and enterprise systems. Manufactured for TAA compliance, it supports Windows, Linux, and Android for seamless integration in secure environments. KB-6868S-FcB also availabe
FEATURE
- Full-size USB keyboard with built-in smart card reader and fingerprint sensor
- EMV 4.0 & PBOC 2.0 certified smart card reader with slot cap
- FAP 20 certified capacitive fingerprint sensor with 508 DPI resolution
- Smart card slot positioned above fingerprint sensor for added protection

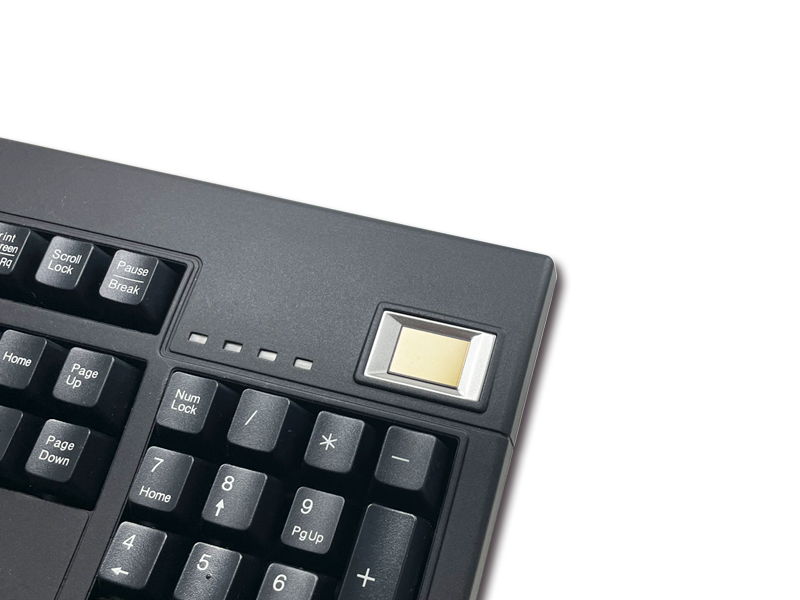

- Gold-coated active bezel ensures clear image quality
- Stores up to 100 fingerprint templates securely
- Made in Taiwan, TAA compliant for government procurement
- Compatible with Windows, Linux, and Android systems
- Ideal for banking, healthcare, and secure ID verification applications
SPECIFICATION
| Keyboard | |
| Key Numbers | 104/ 105/ 109 keys (US/ EU/ JP) |
| Key Switch Mechansim | Membrane-type Key switch with 20 million life cycle time |
| Total Travel Distance | 4 +/- 0.5 mm |
| Key Force (Peak Load) | 50 +/- 7g |
| Interface/ Input Power | USB 1.1 Version / 5Vdc, < 100mA |
| Body shape/ Key Caps | S-curve body design/ Ergonomic keycap design with 5 different height |
| LEDs Indicator | NumLock, CapsLock, ScrolLock, Fingerprint Indicator |
| Smart Card Reader | |
| Standard | ISO7816 |
| Protocols | T=1. T=1 |
| APDU Support | Short APDU and Extended APDU |
| Card Type Support | ISO7816 Class A, B, & C (5V, 3V, 1.8V smart cards) |
| API Support | PCSC, CTAPI, Synchronous-API, OCF |
| Software Update Capability | Software updated from memory cardd module |
| Certifcations | EMV 4.0 Level 1, PBOC 2.0 Level 1 |
| Direct Web Link Support | Configurable via external EEPROM |
| Reliablility | 100K card insertions (500K life cycle time also available) |
| Capacitive Fingerprint Reader | |
| Sensor Type | Capacitive sensor |
| Certification | PIV-071006 Certified |
| Ingress Protection | IP65 rated top surface sealed against dust and liquid |
| Sensor Coating | Gold coating with activie bezel for enhanced image quality |
| Image Resolution | 508 dpi |
| Sensor Array size | 256 x 360 pixels |
| Imaging Resolution | 12.8mm x 18.0 mm |
| Gray Scale Levels | 8-bit (256 levels) |
| Template Capacity | Stores up to 100 fingerprint templates in non-volatile memory |
| Template Extraction & Matching | Embedded algorithm supporting standard and enhanced templates |
| Matching Speed | Up to 56.5 matches per second (standard template) |
| Others | |
| Physical Dimension | 465 (L) x 172 (W) x 35.3 (H) mm |
| Gift Box/ Weight | 500 (L) x 220 (W) x 55 (H)mm/ 1.3 kgs (G.W.) |
| Packing Information | 5 pcs/ctn; 1.39 cuft/ctn; 8.5 kgs (GW) |
| Box Dimension | 515 (L) x 305 (W) x 250 (H) mm |
