KB-6868S-FcB
Full-Size Smart Card & Capacitive Fingerprint Keyboard

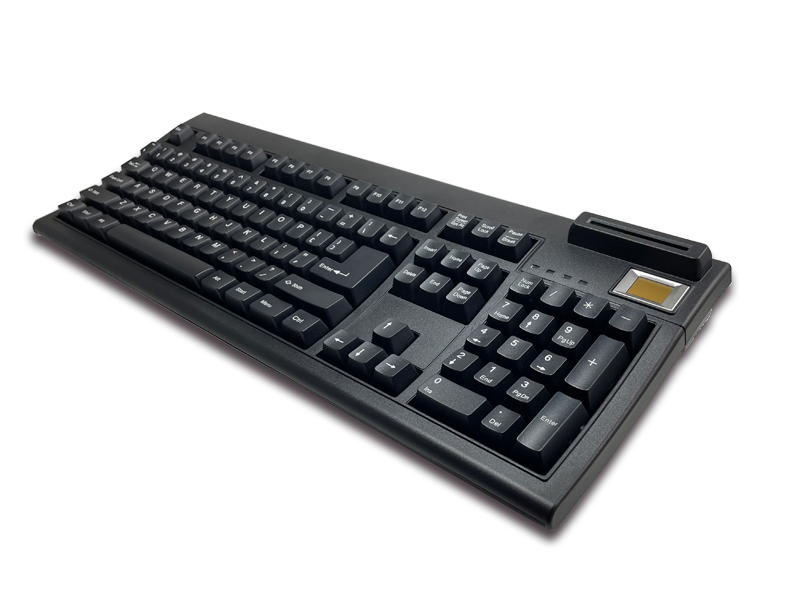

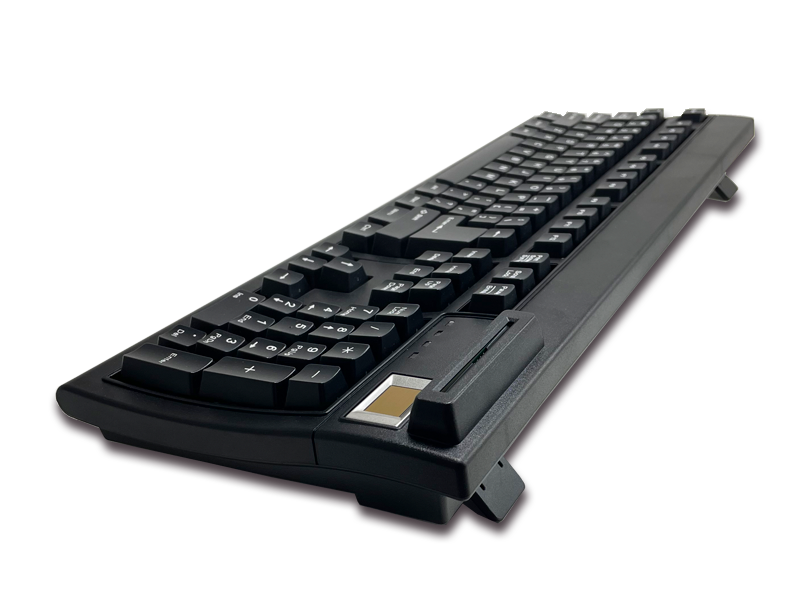

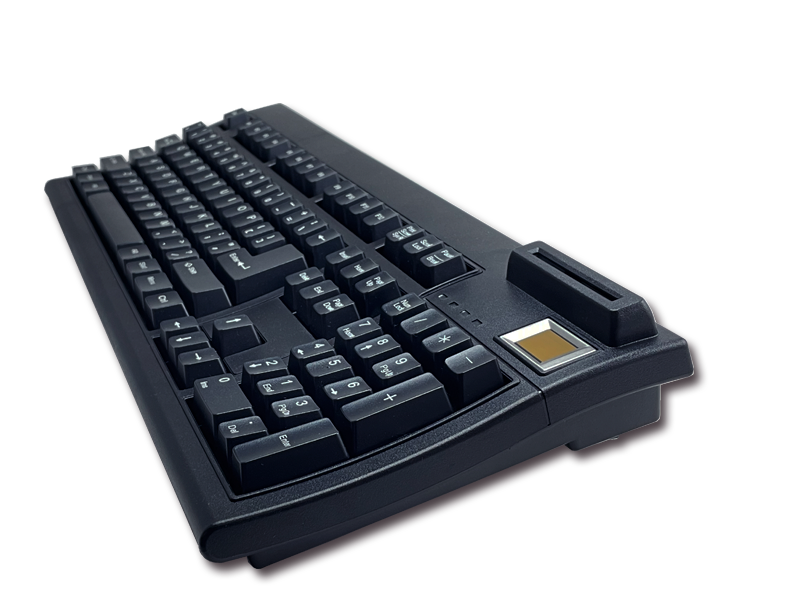

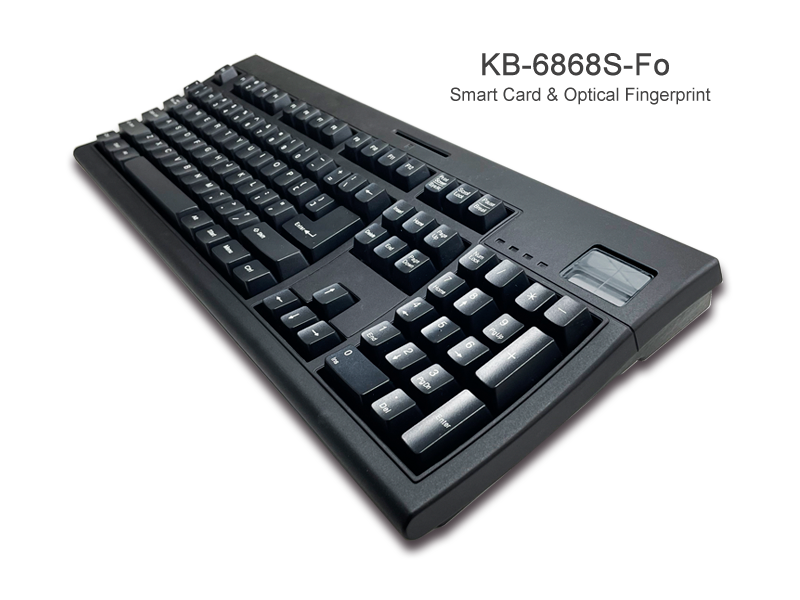

The KB-6868S-FcB is a robust full-size USB keyboard made in Taiwan, featuring a high-security smart card reader with a slot cap located above its PIV-certified capacitive fingerprint sensor. It offers EMV 4.0 and PBOC 2.0 certified smart card reading and a 508 DPI fingerprint sensor with gold-coated active bezel for high-quality image capture and precise ID verification. Manufactured for TAA compliance, the KB-6868S-FcB ensures seamless integration in banking, healthcare, government, and enterprise security environments. KB-6868S-Fo optical fingerprint keyboard also availabe
FEATURE
- Full-size USB keyboard with built-in smart card reader and fingerprint sensor
- EMV 4.0 & PBOC 2.0 certified smart card reader with slot cap
- FAP 20 certified capacitive fingerprint sensor with 508 DPI resolution

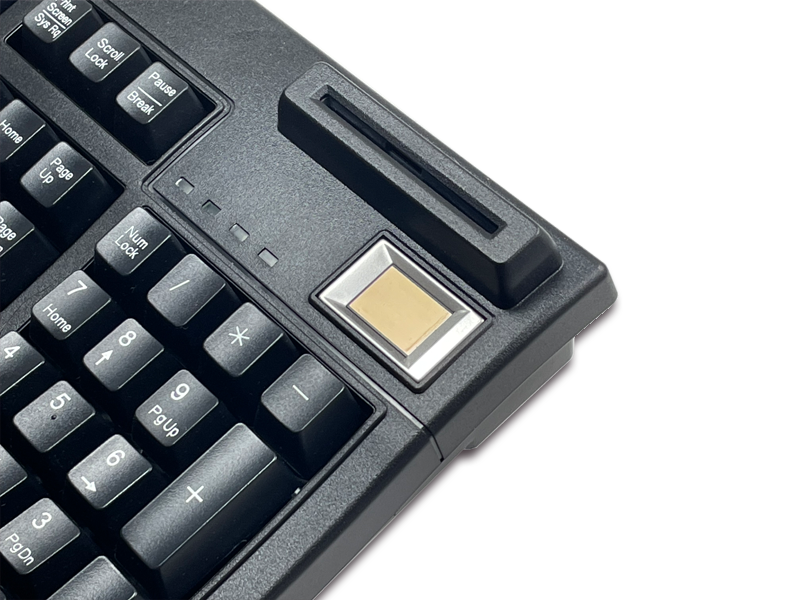

- Smart card slot positioned above fingerprint sensor for added protection
- Gold-coated active bezel ensures clear image quality
- Stores up to 100 fingerprint templates securely
- Made in Taiwan, TAA compliant for government procurement
- Compatible with Windows, Linux, and Android systems
- Ideal for banking, healthcare, and secure ID verification applications
SPECIFICATION
| Keyboard | |
| Key Numbers | 104/ 105/ 109 keys (US/ EU/ JP) |
| Key Switch Mechansim | Membrane-type Key switch with 20 million life cycle time |
| Total Travel Distance | 4 +/- 0.5 mm |
| Key Force (Peak Load) | 50 +/- 7g |
| Interface/ Input Power | USB 1.1 Version / 5Vdc, < 100mA |
| Body shape/ Key Caps | S-curve body design/ Ergonomic keycap design with 5 different height |
| LEDs Indicator | NumLock, CapsLock, ScrolLock, Fingerprint Indicator |
| Smart Card Reader | |
| Standard | ISO7816 |
| Protocols | T=1. T=1 |
| APDU Support | Short APDU and Extended APDU |
| Card Type Support | ISO7816 Class A, B, & C (5V, 3V, 1.8V smart cards) |
| API Support | PCSC, CTAPI, Synchronous-API, OCF |
| Software Update Capability | Software updated from memory cardd module |
| Certifcations | EMV 4.0 Level 1, PBOC 2.0 Level 1 |
| Direct Web Link Support | Configurable via external EEPROM |
| Reliablility | 100K card insertions (500K life cycle time also available) |
| Capacitive Fingerprint Reader | |
| Sensor Type | Capacitive sensor |
| Certification | PIV-071006 Certified |
| Sensor Coating | Gold coating with activie bezel for enhanced image quality |
| Ingress Protection | IP65 rated top surface sealed against dust and liquid |
| Image Resolution | 508 dpi |
| Sensor Array size | 256 x 360 pixels |
| Imaging Resolution | 12.8mm x 18.0 mm |
| Gray Scale Levels | 8-bit (256 levels) |
| Template Capacity | Stores up to 100 fingerprint templates in non-volatile memory |
| Template Extraction & Matching | Embedded algorithm supporting standard and enhanced templates |
| Matching Speed | Up to 56.5 matches per second (standard template) |
| Others | |
| Physical Dimension | 465 (L) x 172 (W) x 35.3 (H) mm |
| Gift Box/ Weight | 500 (L) x 220 (W) x 55 (H)mm/ 1.3 kgs (G.W.) |
| Packing Information | 5 pcs/ctn; 1.39 cuft/ctn; 8.5 kgs (GW) |
| Box Dimension | 515 (L) x 305 (W) x 250 (H) mm |
