Scissory-type 2 Zone Keyboard Module, PC layout


80% Compact Size KEYBOARD MODULE for KVM

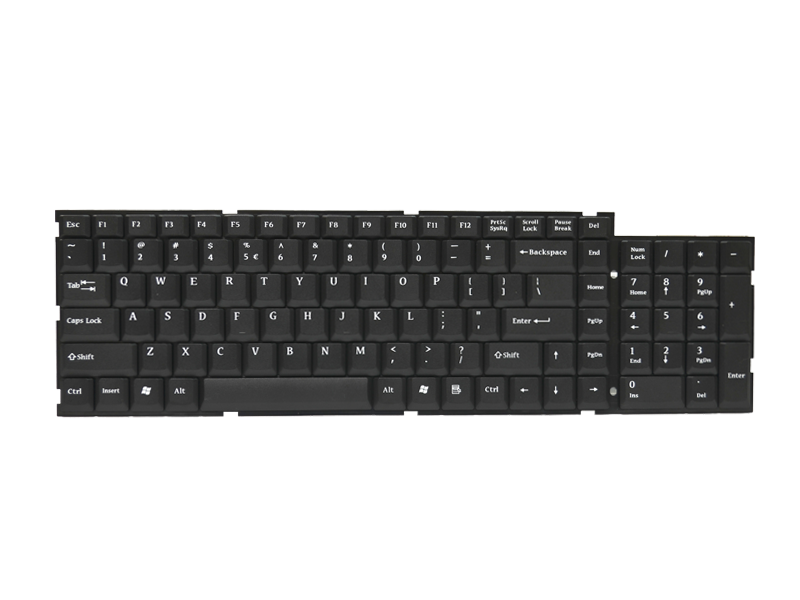

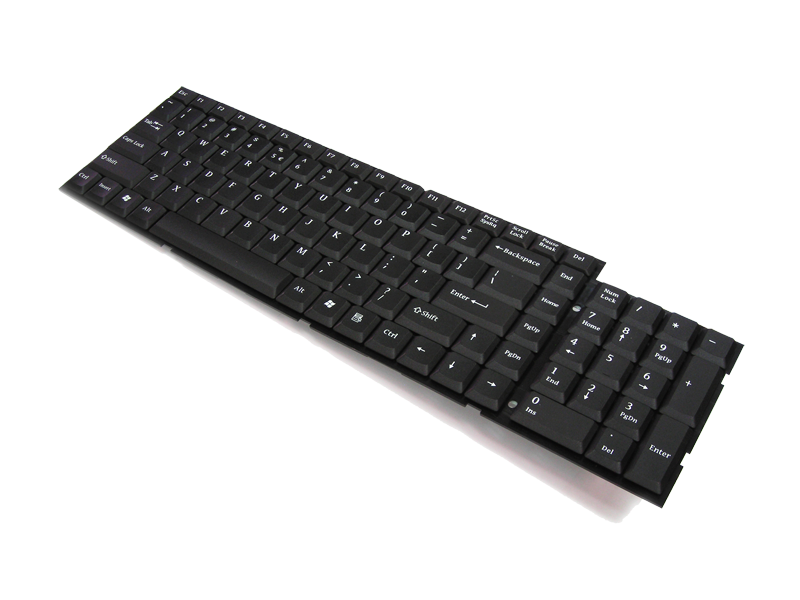

KBM-3000 is a two zone keyboard module which is specially designed for KVM Console. Its compact size and modularized mechanical design provides flexible product configuration and easy maintenance. With scissor-type key switch, it makes the touch and feel of the keycaps exceptional. We also optionally provide controller, KBC-3000 or customized codes and touchpad module as demand.


  • Enhanced 104/105 keys (US/ EU)
  • Scissor-type key switch mechanism makes good touch feeling
  • Low profile and tactile feedback for quiet/ easy typing
  • High reliable membrane contact technology
  • Modularized design provides flexible product configuration


Key Numbers 104/ 105 keys (US/ EU layout)
Key Switch Scissor-type key switch
Key Force 60 +/- 8 gm
Key Pitch 0.85 mm/ 19.05 mm(key centre-to-centre)
Traveling Distance 2.8 +/- 0.2mm
Input Power 5Vdc, 100mA
Layout Area 385.29 (L) x 107.66 (W) mm
Module Dimension 391.30 (L) x 113.64 (W) x 6.90 (H) mm
Operating Temperature 0 to 55 degree Cesius (10% to 85% RH, 25 degree Celsius)
Storage Temperature -10 to 60 degress Celsius (5% to 90% RH, 25 degree Celsius)
Weight 300 +/- 5g (with metal plate)

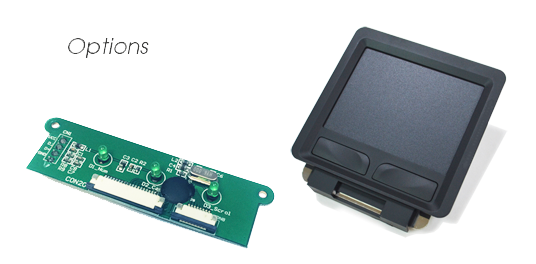

Optons USB Keyboard Controller (Bluetooth also available), TouchPad Module
