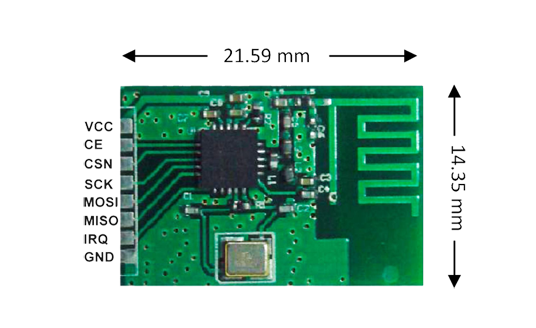

24L01P-B

2.4GHz GFSK Transceiver Module

24L01P-B

2.4GHz GFSK Transceiver Module

FEATURE


  • Worldwide 2.4GHz ISM Band (2.400 ~ 2.483GHz)
  • GFSK Modulation
  • 250K, 1M, 2M air data rate
  • Programmable output power: 0, -6, -12, 18dBm
  • 11.3mA TX @0dBm output power / 13.1mA RX @1Mbps air data rate
  • 900nA in power down mode / 22uA in standby-1
  • 1.9V ~ 3.6V supply voltage range
  • Automatic packet handling / Auto packet transaction handling

SPECIFICATION

VDD Supply voltage  1.9 ~ 3.6 V
Fop Operating frequency  2400 ~ 2483 MHz
FXTAL Crystal frequency  16 MHz
▲F Crystal tolerance +/- 60 ppm
IVDD_TX0 Supply current @odBm output power 11.3 mA
IVDD_1M Supply current 1Mbps 13.1 mA
IVDD_PD Supply current in power down mode 900 nA
IVDD_ST1 Supply current in standby-I mode 26 uA
IVDD_ST2 Supply current in standby-II mode 320 uA
PRF Maximum output power 0 ~ 4 dBm
RXSENS Sensitivity (0.1%BER) @2Mbps  -82 dBm                                                                     Sensitivity (0.1%BER) @1Mbps  -85 dBm                                                                  Sensitivity (0.1%BER) @2Mbps  -95 dBm
VIH High level input voltage 0.7VDD 5.25 V
VIL Low level input voltage VSS 0.3VDD V
